Oncilla – Mista

Specification

Weight

Gross weight, kg 8800+3%

Wheelbase

3100 mm

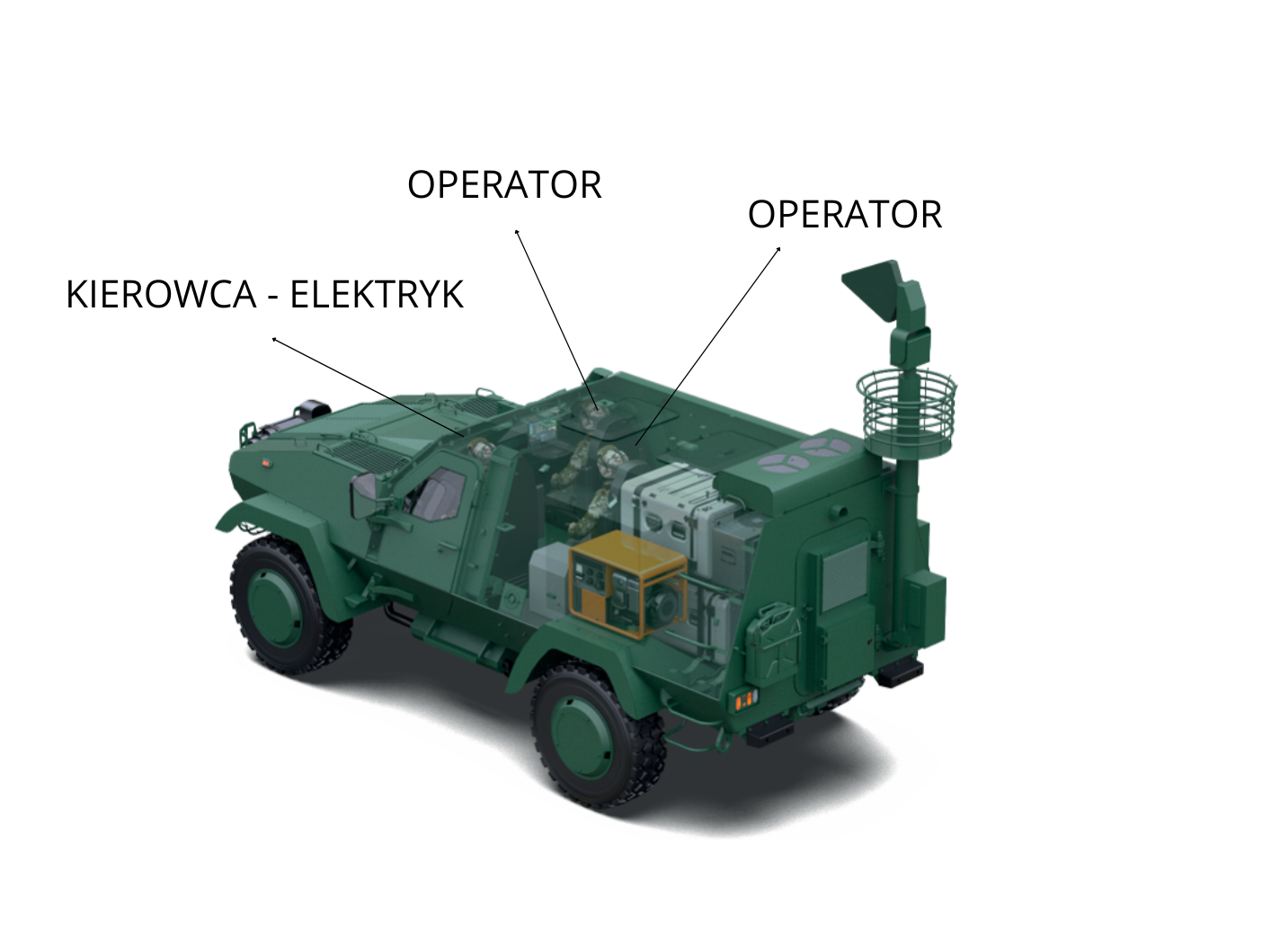

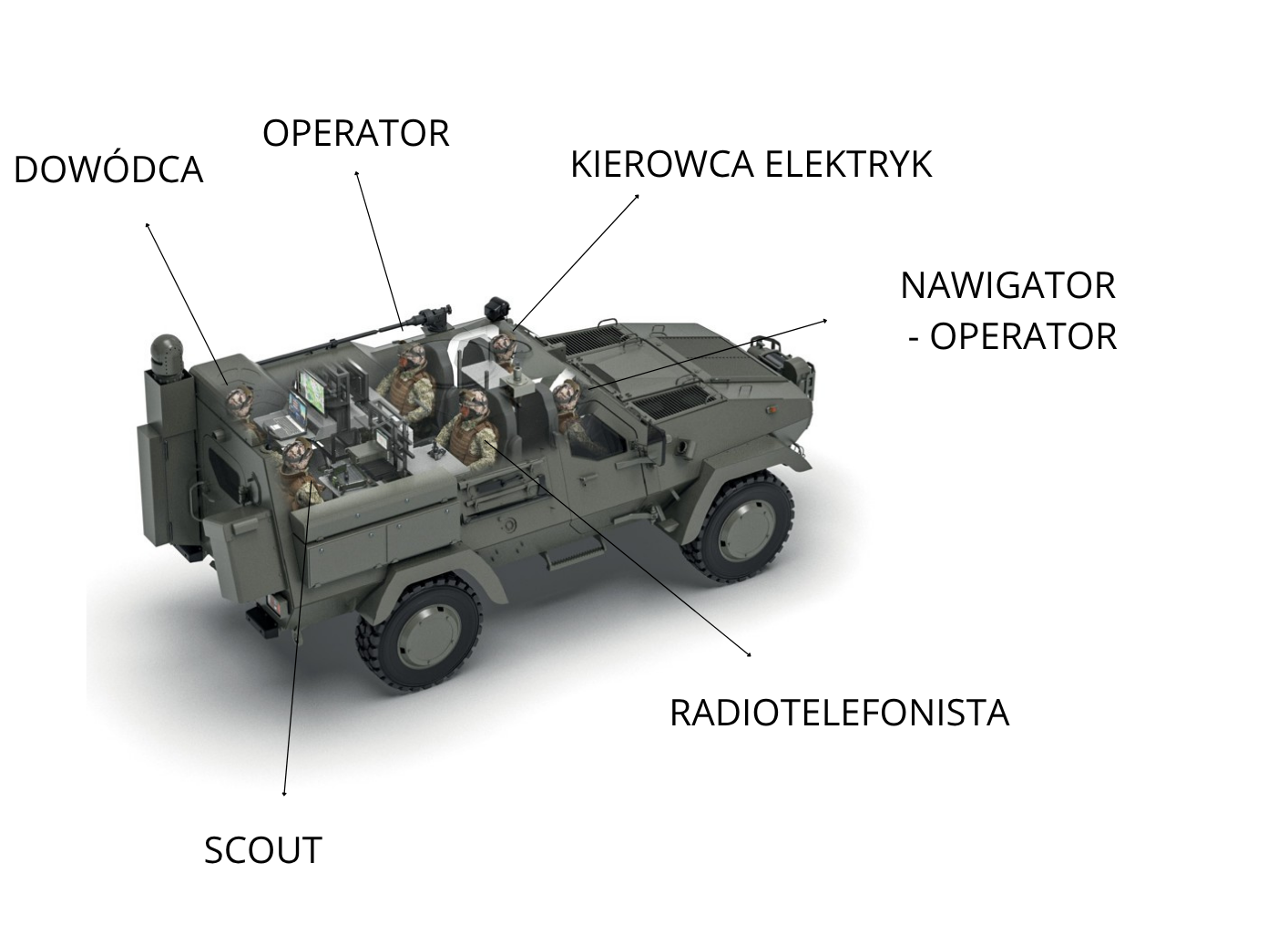

Combat crew

Crew: 3 (commander, driver, gunner)

Soldiers: 6

I stand width

2000 mm

Overall dimensions, mm

Length with winch 5450/5800

Width 2450

Height (to the top of the hull / to the rifle) machine AA on travel 2300/2700

Ground clearance

not less than, mm 400

Engine

1.

KM DEUTZ BF 4M 1013FC

Maximum power: 190.5
Gearbox type: Allison 1000

2.

IVECO NEF 4 ENTC

Maximum power: 209.5
Gearbox type: Autoamtic (6/1)

Driving performance:

Front outer wheel min. turning radius, m 8.9
Max. speed on the highway, not less than, km/h 120
Fuel range, not less than, km 750

Bridged obstacles:

Max. climbing angle, degree 30
Max. heeling angle, degree 24

Weapon system, type NSV
Machine gun caliber, mm 12,7

Air conditioning and heating system (NATO AECTP – 230)

Level of armor protection (NATO STANAG 4569): 2;
with external additional passive armor (NATO STANAG 4569): 3

Wyniki badania korpusu

Equipment and the ability to upgrade

Standard equipment

The standard APC equipment package includes:

A central tire inflation system;
Hydraulic power steering;

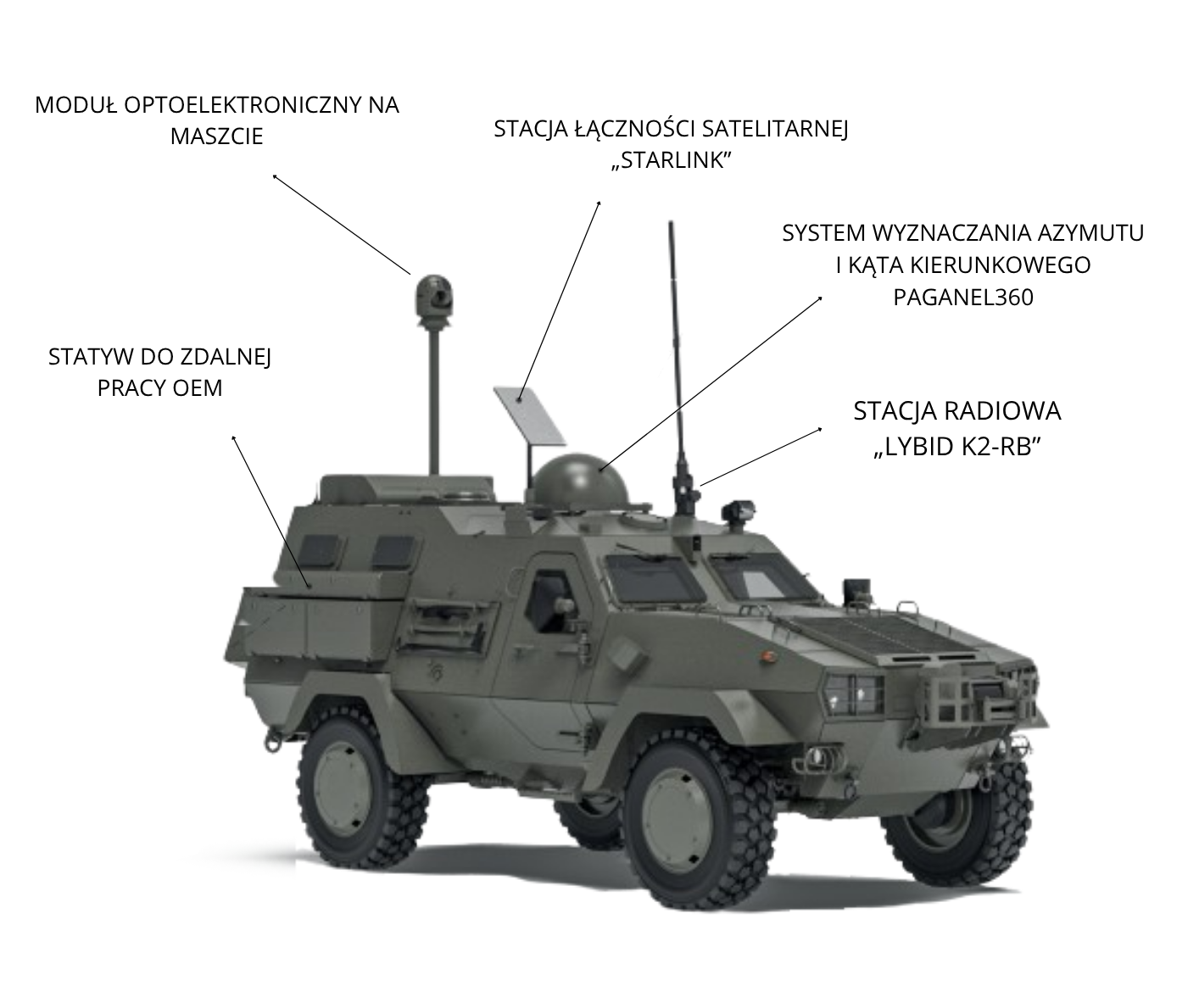

Communication and satellite navigation systems;
Heating;
Ventilation and air conditioning (HVAC);
Automatic fire extinguishing system;
Filter and ventilation unit;

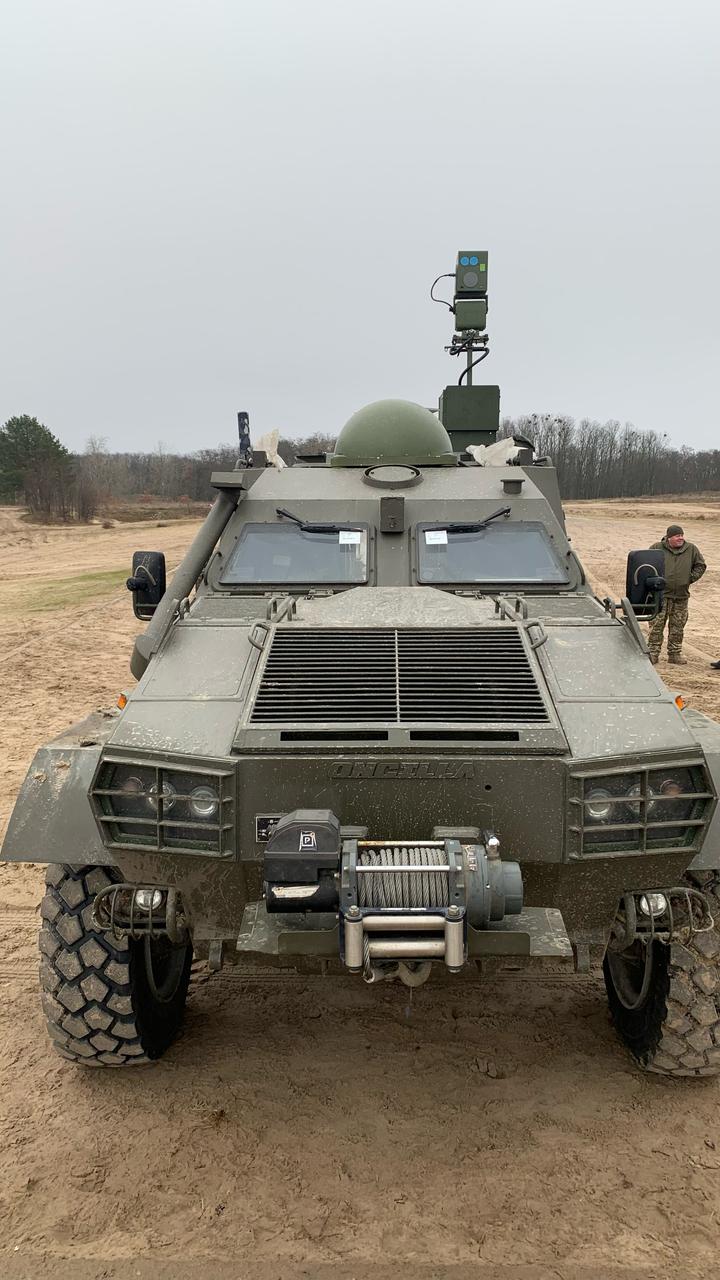

Self-securing winch 6.8 t.

Upgrade

Due to the high payload and good versatility, Oncilia has great potential for further modernization.

Given its standard design, it is possible to develop the following types of vehicles:

Chemical and radiological recognition vehicle;
Command vehicle;
Reconnaissance and patrol vehicle.
